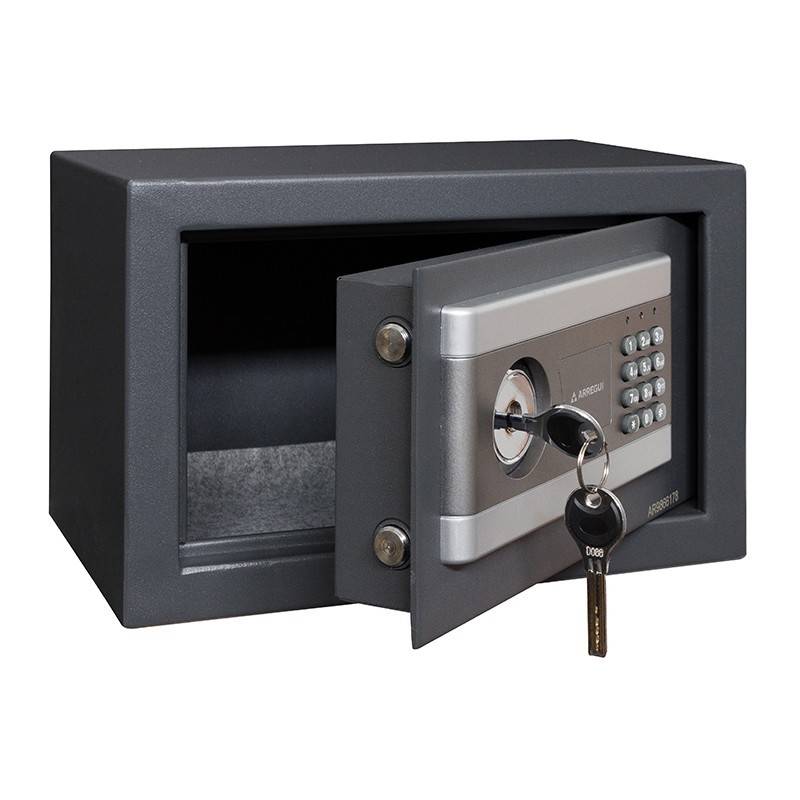

Electronic Lock + Key - Surface-mounted safe with double security opening with electronic keypad plus key and 4 mm front.

Ref 19010-S1 Category Surface Safes
Size
08 L - 20 x 31 x 20 cm 15 L - 25 x 35 x 25 cm
    • Ficha técnica STYLO

    Manual de instrucciones

    Shipments in 48/72h *

    We are manufacturers

    Maximum quality

    Physical Characteristics

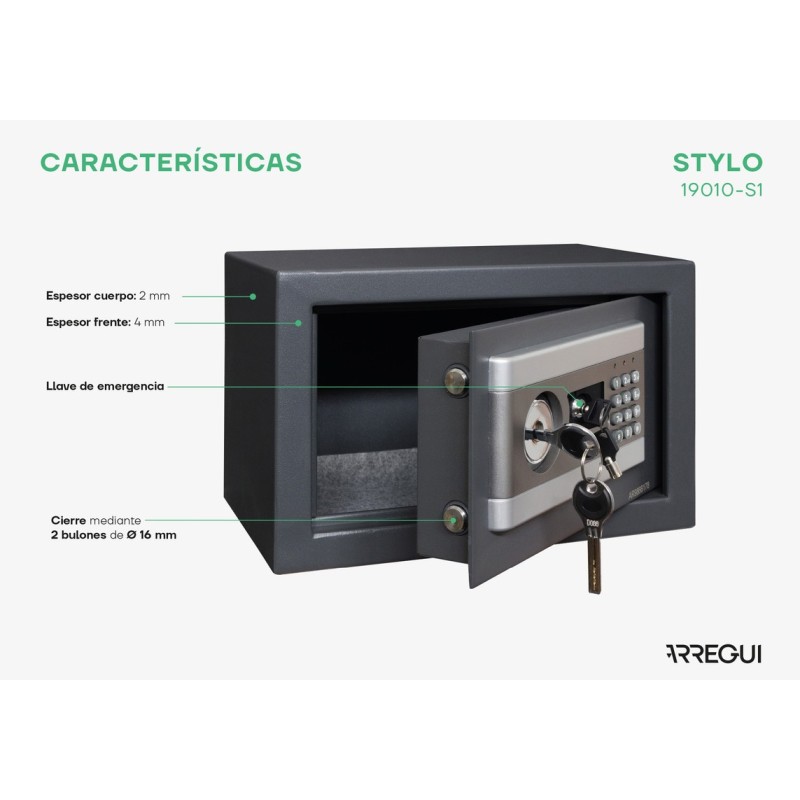

    • Made of steel with a 4 mm thick front and 2 mm thick body.
    • Locking system with nickel-plated steel bolts.

    Opening and Closing System

    • Electronic lock with keypad plus key lock (double security). Once the correct code is entered, the box can be opened by inserting and turning the key.
    • It has 2 programmable opening codes. Codes from 3 to 8 digits (100 million possible combinations).
    • With protection lockout: temporarily locks after 3 incorrect codes are entered.
    • With LED lights next to the keypad to assist in using the safe.

    Power Supply

    • Powdered by 4 AA 1.5V alkaline batteries (not included).
    • Low battery warning by lighting up the red LED on the keypad.

    Emergency Opening

    It has an additional lock for emergency opening with a key (provided) to open the box in case of dead batteries, forgotten code, or keyboard malfunction. It is used in combination with the user key.

    Available Models and Sizes

    Measurements in height x width x depth:

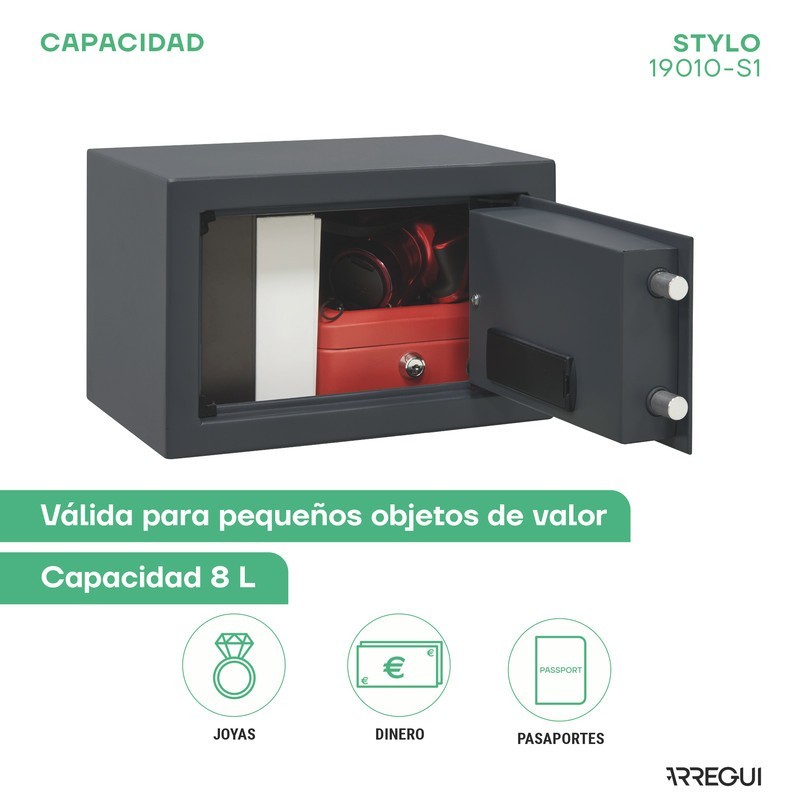

    • 19010-S1 | 20x31x20 cm (exterior) | 19.5x30.5x13.5 cm (interior) | 7 kg weight | 8 L capacity | 2 bolts of ø16 mm.
    • 19010-S2 | 25x35x25 cm (exterior) | 24.5x34.5x 8 cm (interior) | 10 kg weight | 15 L capacity | 2 bolts of ø20 mm.

    Installation

    No construction work is required for installation, but it is recommended to secure it to reduce the risk of theft. It has pre-drilled holes to attach the box to the wall, a shelf, or the floor. Mounting screws are included.

    • Model 19010-S1 (20x31x20 cm): 2 holes on the base and 2 on the back, 9 mm in diameter.
    • Model 19010-S2 (25x35x25 cm): 4 holes on the base and 4 on the back, 9 mm in diameter.

    What's Included?

    The package includes the safe, the instruction manual, 2 user keys, 2 emergency opening keys, and the mounting hardware.

    Replacement Parts

    User key model 311LLCF.

    Emergency opening key model EB-LLET.

    Each box has a unique serial number engraved, so key duplicates can be requested in case of loss.
