Invisible Door Lock with Alarm | ARREGUI

Invisible Security Lock for Door with Sound Alarm, Electronic Interior Bolt for Door, Opening and Closing with Remote Control (4 remotes included)

Ref CI10P-AL Category Invisible Locks

INVISIBLE: security lock to be placed inside, thieves are unaware of its existence or at what height it is located.
WITH REMOTE CONTROL: opening and closing via remote control (4 remotes included), reprogrammable in case of loss or theft.
WITH ALARM: has early detection of burglary via a sound alarm of 110 dB, which can be activated or deactivated.
FOR WOODEN OR METAL DOORS: made of steel, suitable for wooden or metal doors. Supplied with screws, manual, and everything necessary for installation.
TECHNICAL ASSISTANCE: has a Technical Assistance Service ARREGUI throughout Spain for any needs related to its use.

Colour

Ficha técnica CERRADURA

Manual de instrucciones

Invisible security lock with alarm. Invisible lock because it is designed to be placed on the interior: since it is not visible from the outside, thieves are unaware of its existence or its location, making it more difficult to tamper with, drill, or attack.

Works as a second lock, as a complement to the conventional lock that each person already has installed on their door. In case the conventional lock has been forced or opened, Arregui's invisible security lock constitutes an unexpected additional security barrier that prevents the door from being opened.

It can be used in both homes and residences as well as in commercial premises, offices, and workplaces where we want to have extra security.

Opening and closing system

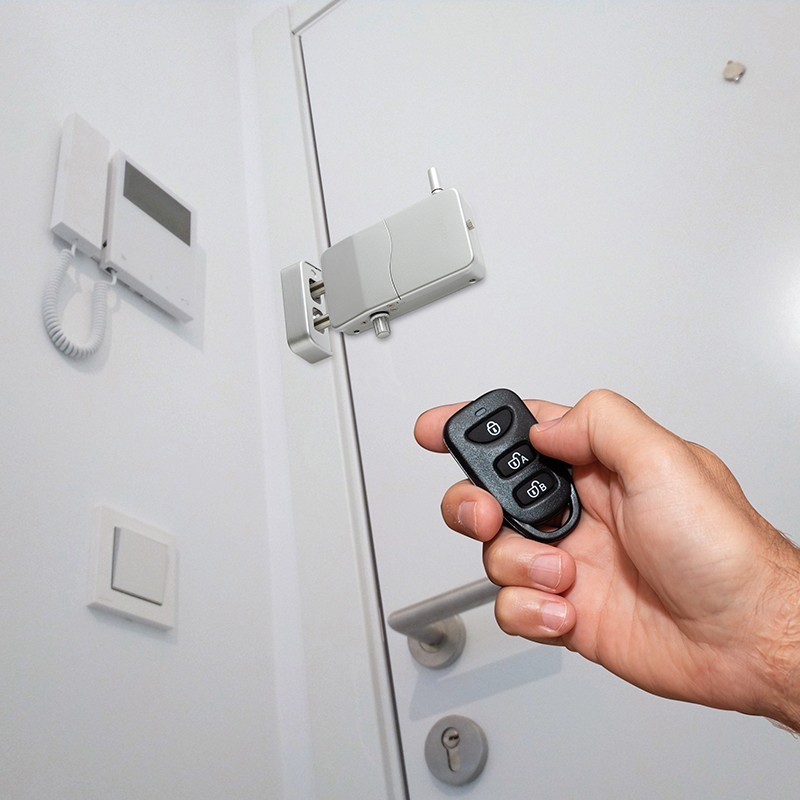

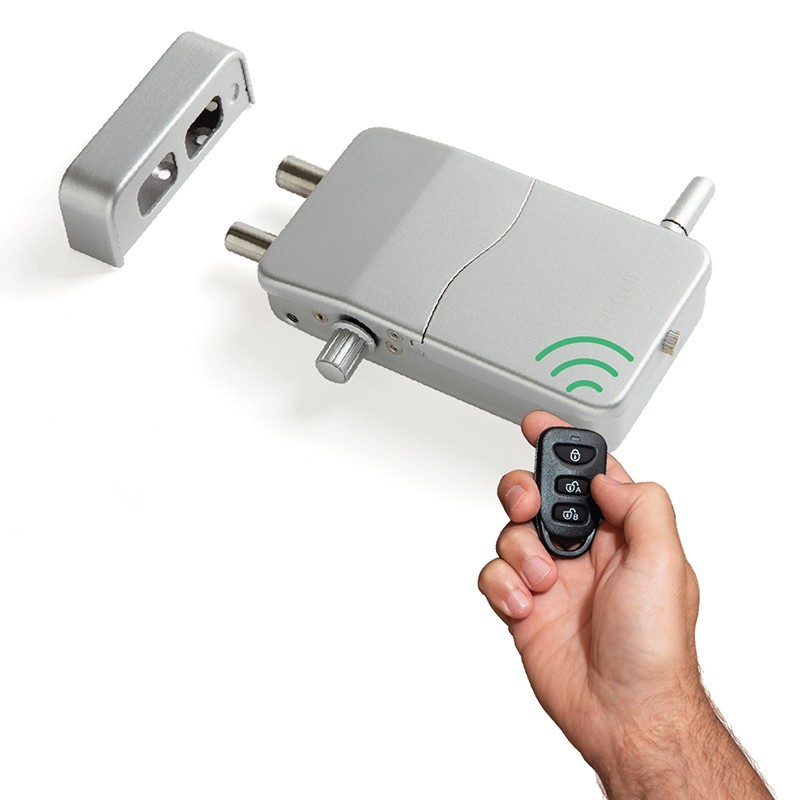

Its closure or opening is activated by remote control: pressing the close button on the remote locks the door, either from the outside when leaving or while staying inside. Pressing the open button unlocks the lock.
The remotes operate via radiofrequency, with encryption using variable codes that make copying impossible through frequency tuners.

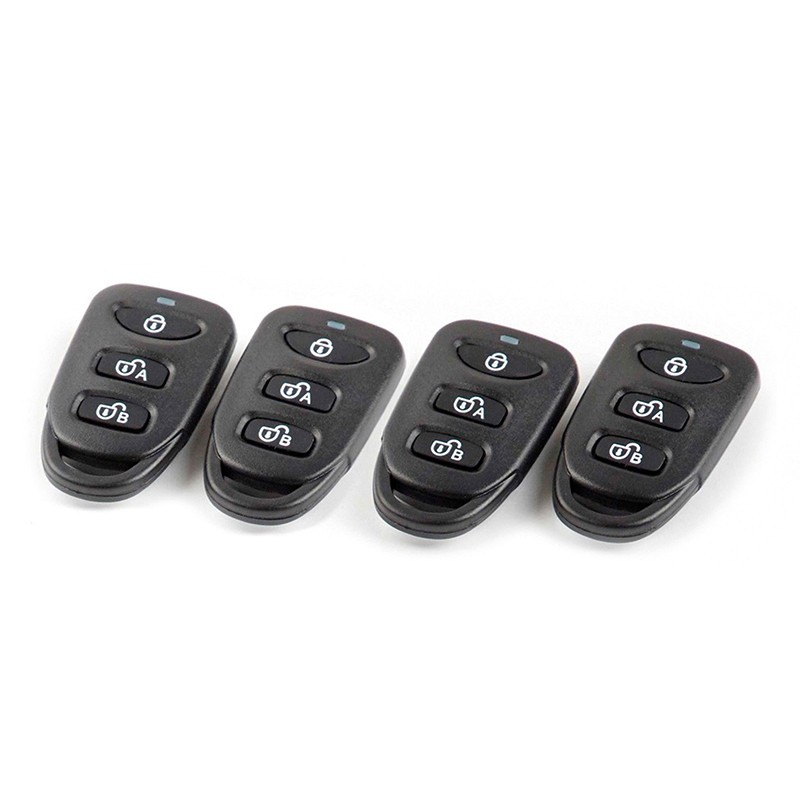

Includes 4 remote controls. The remotes can be reprogrammed in case of loss or misplacement. New remotes can also be added. Up to 16 remotes can be associated per lock.
It is possible to associate the same remote control with multiple locks of the same model.
There is no automatic closure: the user decides when to close it and avoids unnecessary battery consumption.
Manual opening and closing is also possible with the latch.

Nutrition

Dual power supply, one normal and the other emergency. It is powered by 4 AA 1.5 V batteries. The emergency power supply is provided by a 12 V battery.
When the batteries are running low, when trying to close, the lock will emit 4 beeping warnings and the closing will not occur.
When the batteries are running low, 5 warning beeps will sound when unlocking the lock. The batteries should be replaced to ensure proper operation.

Emergency opening

If the lock does not work because the batteries are drained, you should use button B on the remote control, which will activate the emergency battery, opening the lock.

Early theft detection alarm

It has theft detection: the door security is reinforced with early theft detection provided by its high-power 110 dB siren. The alarm will sound as soon as the door is opened or when it detects the blows and vibrations that occur in robbery attempts.
The alarm functionality can be deactivated using the ON/OFF switch on the lock. If the switch is set to OFF, the vibration sensor is deactivated, so the alarm will not go off in case of impacts or tampering on the door.

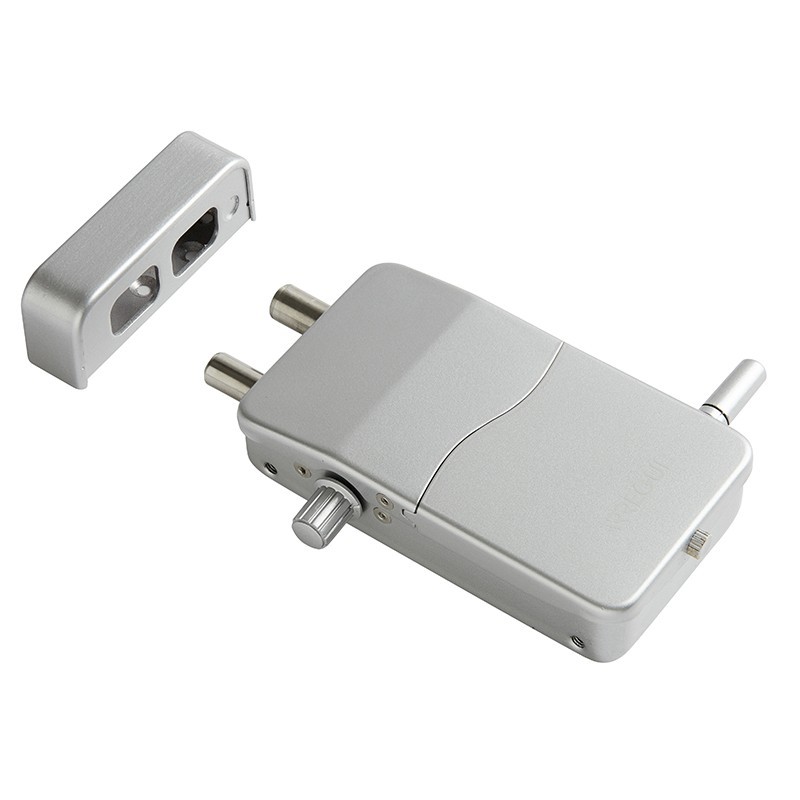

Material and dimensions

It is very robust, with a steel outer body and stainless steel interior components.
Bolt dimensions: 7.5 x 13.3 x 3.5 cm (height x width x depth).
Closure dimensions: 8.5 x 2.2 x 3.4 cm (height x width x depth).
Weight: 632g.
Available in three models: gold, black, and silver.

Installation

With easy and wire-free installation, the lock is suitable to be placed on any wooden or metal door.

Installation and user manual attached. We recommend watching the installation explanatory video.

What is included in the shipment?

The package includes the lock, the antenna, the striker plate, the mounting plates, the mounting screws for wood or metal doors, an Allen key, 4 remote controls, the power batteries, and the user and installation manual.

Spare parts and accessories

It is possible to purchase additional remote controls, either to replace the ones provided or to expand the number of remotes to be used with the lock. It is the CI10-ALRC model.
